Eduroam – Connect Windows 8 (manual instructions)

If you are running Windows 8 on a PC, laptop or notebook, please use the eduroam Windows 8 automatic set-up wizard instead of these instructions, unless you have had problems with the wizard.

Windows 8 RT is a special version of Windows 8 that runs on certain tablet devices (devices with ARM processors) – It’s not possible to run the usual Windows 8 set-up wizard on RT devices, so you will need to follow these manual instructions.

There are two main steps to complete:

  1. Import the University’s Net CA Certificate
  2. Configure wireless settings

Import the University’s Net CA Certificate

  1. Connect to the Bristol-WiFi-Setup wireless network (open access), this will allow you to complete the next step (alternatively use a USB memory stick to transfer files to your computer).
  2. In Internet Explorer, not Firefox, Opera or anything else, go to this web page www.wireless.bris.ac.uk/certs/eaproot/uob-net-ca.crt to download the certificate and choose Open
    Windows 8 screenshot
  3. When the certificate opens, click the Install Certificate button.
    Windows 8 screenshot

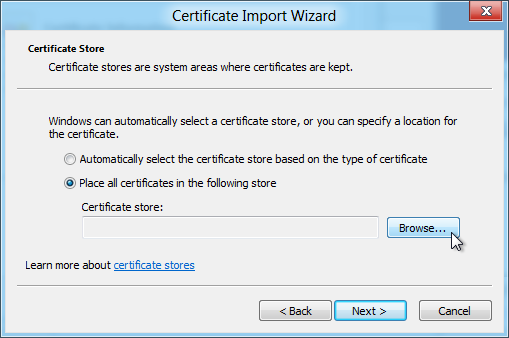

  4. If asked which Certificate Store to use, pick Place all certificates in the following store, click Browse and then choose Trusted Root Certification Authorities and click OK.
    Windows 8 screenshot

    Windows 8 screenshot

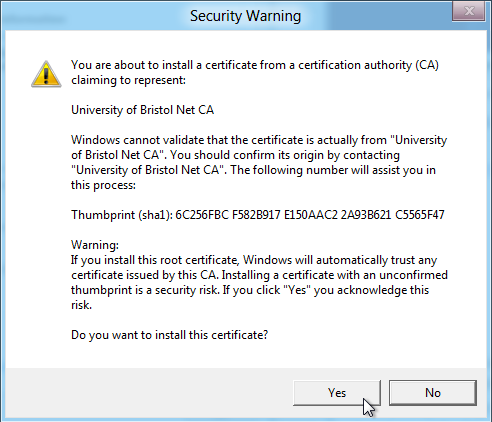

  5. When asked to confirm if you wish to install the certificate click Yes.
    Windows 8 screenshot

Configure wireless settings

  1. Open Desktop Control Panel by opening Control Panel, scrolling all the way to the bottom, and choosing More settings
  2. Choose Network and Internet.
    Windows 8 screenshot
  3. Choose Network and Sharing Centre
    Windows 8 screenshot
  4. Choose Set up a new connection or network
    Windows 8 screenshot

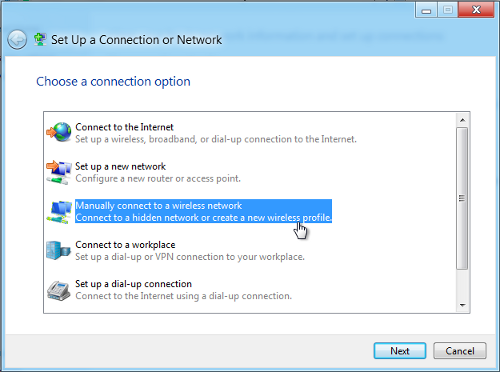

  5. Choose Manually connect to a wireless network
    Windows 8 screenshot

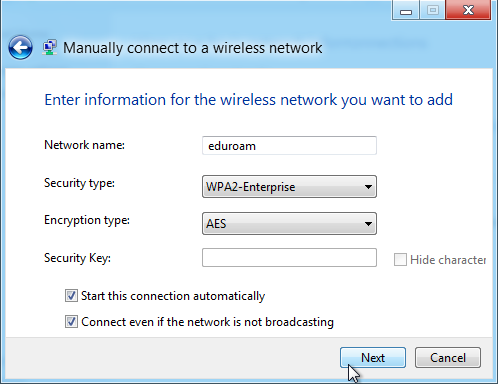

  6. Enter eduroam in the Network name box
  7. Set Security type to WPA2-Enterprise
  8. Tick the Start this connection automatically and click Next.
    Windows 8 screenshot
  9. Choose Change connection settings when prompted
    Windows 8 screenshot

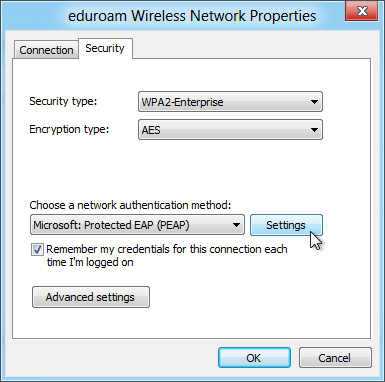

  10. Change to the Security tab, and click the Settings button

    Windows 8 screenshot

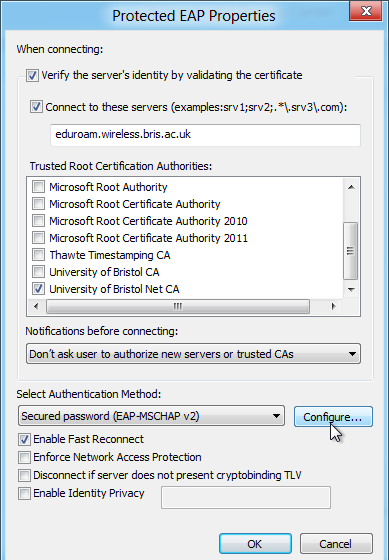

  11. Tick Verify the server’s identity by validating the certificate
  12. Tick Connect to these servers
  13. Enter eduroam.wireless.bris.ac.uk in the Connect to these servers text box
  14. Scroll down and tick only University of Bristol Net CA in the Trusted Root Certification Authorities list
  15. Set Notifications before connecting to Don’t ask user to authorize new servers or trusted CAs
  16. Set Select Authentication Method to Secured password (EAP-MSCHAP v2)
  17. Tick Enable fast reconnect
  18. Click on the Configure button
    Windows 8 screenshot
  19. Ensure Automatically use my Windows logon name… is not ticked and click OK
    Windows 8 screenshot
  20. Click Ok, Ok and then Close

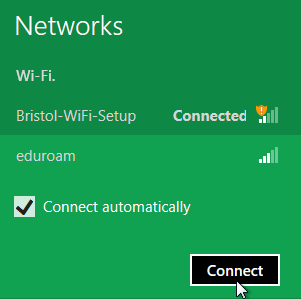

  21. Go to the list of available wireless networks and choose eduroam. Ensure Connect automatically is ticked and click Connect
    Windows 8 screenshot

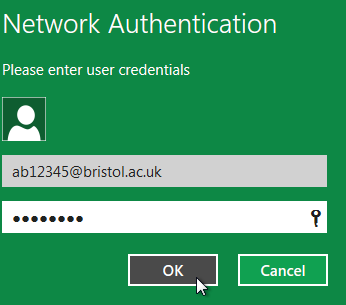

  22. Enter your Bristol username with @bristol.ac.uk added on to the end, for example ab12345@bristol.ac.uk and your normal Bristol password when prompted
    (Please do not use @my.bristol.ac.uk as that will cause problems when connecting to other University services, including Print Release)
    Windows 8 screenshot

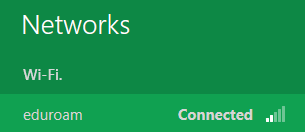

  23. You computer should now connect to eduroam without any further prompts
    Windows 8 screenshot
